Floor Plans · Mammoth Film Studios · 2026Download PDF ↓
Studio 1 — Floor plan01 / 6
8,000 sq ft · London SE8

Studio 1 — Floor plan

Drawn to scale · 18.00 × 37.00 m

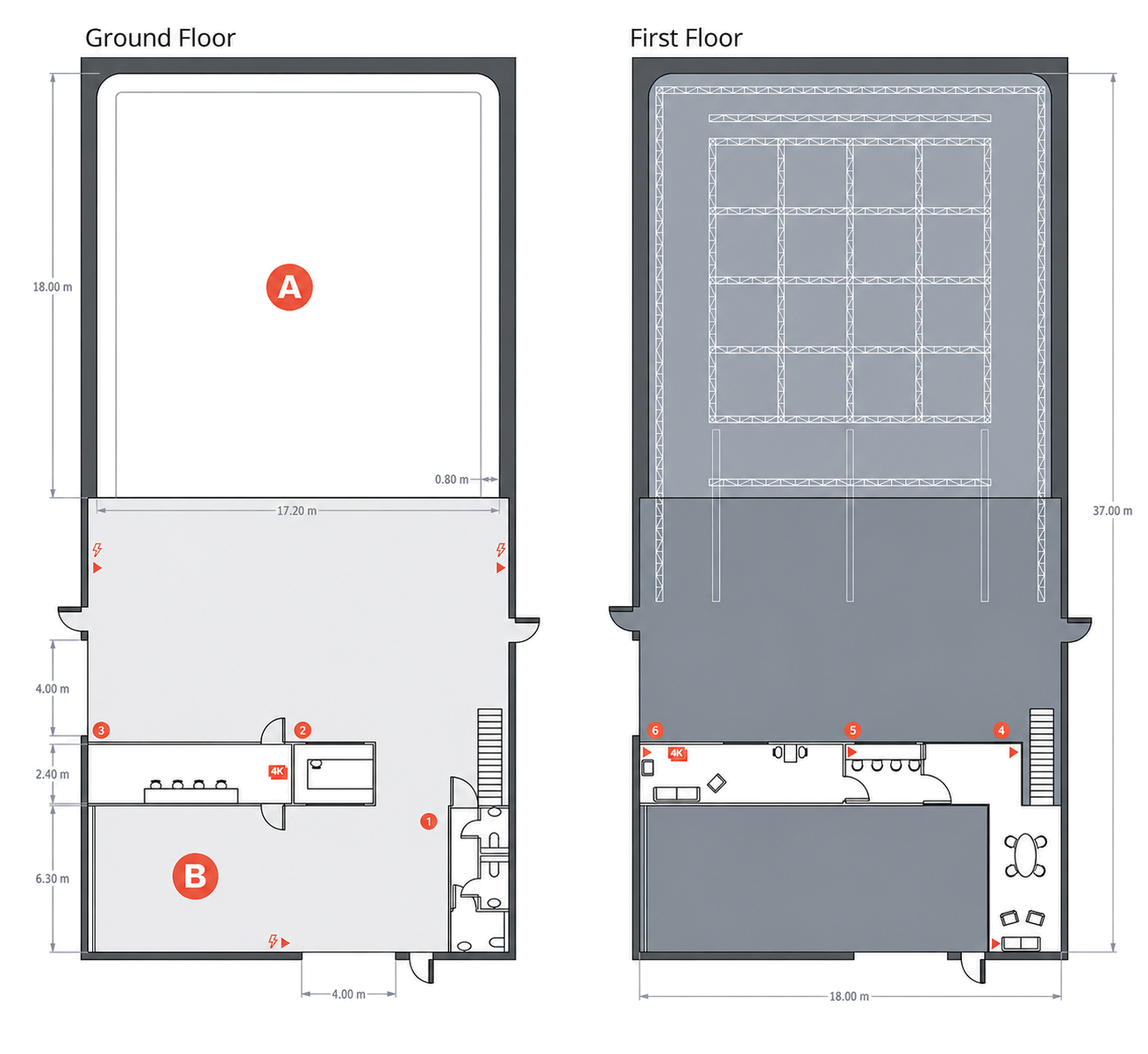

Studio 1 floor plan — ground floor and first floor (motorised grid), drawn to scale
Key
  • A Stage A — white infinity cove
  • B Stage B — concrete photo area
  • 0.5 t Lodestar CM hoist
  • 1 t Lodestar CM hoist
  • 7.5 m trolley system
Rooms
  • 1 Toilets
  • 2 Reception
  • 3 Styling room
  • 4 Balcony
  • 5 Production office
  • 6 Green room
Rigging
Box truss — Milos M290 HD Quatro
Tri truss — Milos M290 HD Trio
Grid 12.05 × 12.05 m
UDL net 1 t SWL
Cove 17.20 × 18.00 m
Building 18 × 37 m
Mammoth Film Studiosmammoth.londonLondon SE8 5DQ
Studio 1 — Floor plan · detail02 / 6
Studio 1 · 8,000 sq ft · London SE8Drawn to scale · motorised grid 12.05 × 12.05 m

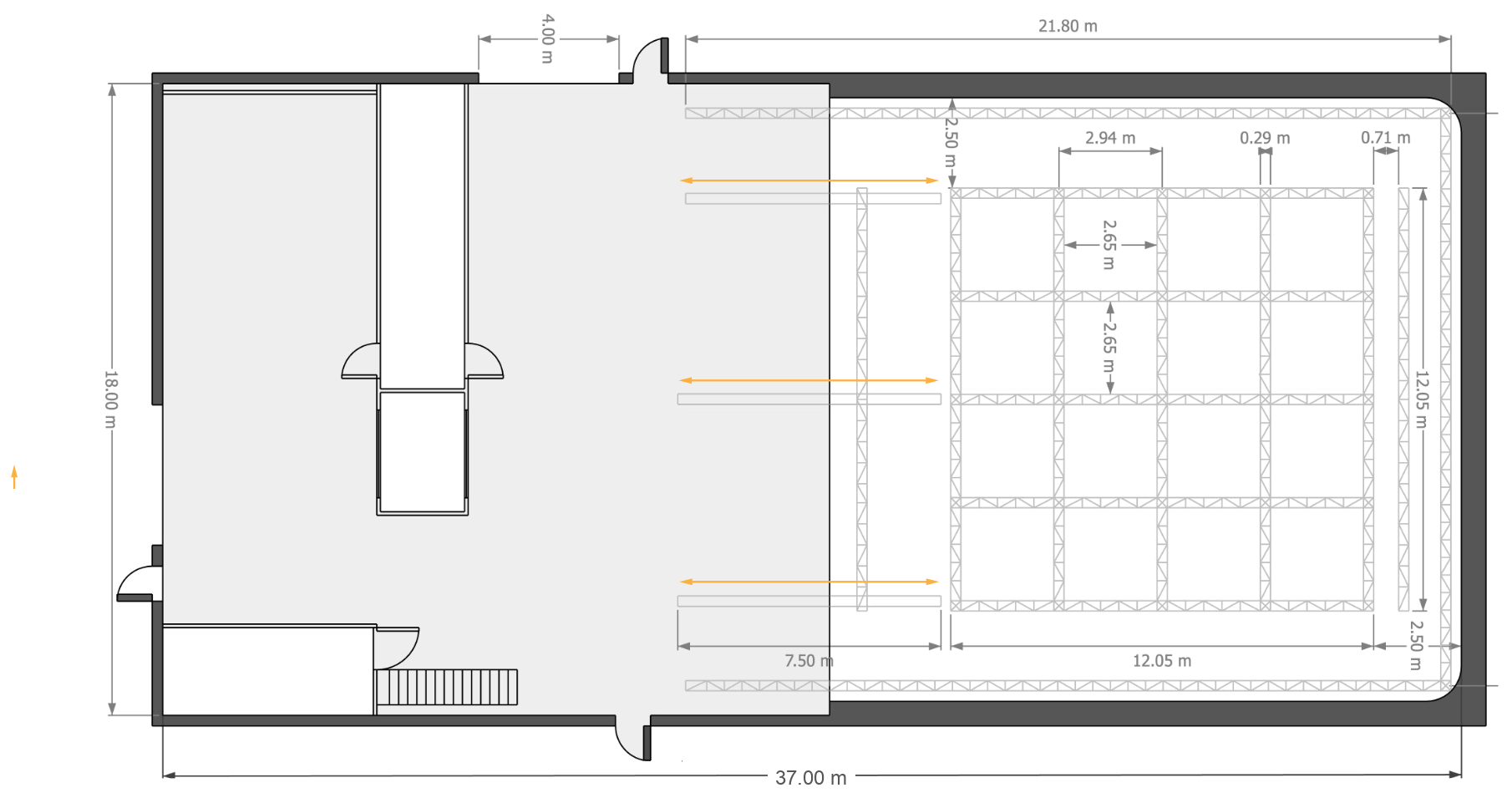

Studio 1 expanded floor plan — motorised box-truss grid, trolley system and production rooms, drawn to scale
Mammoth Film Studiosmammoth.londonLondon SE8 5DQ
Studio 1 — Technical03 / 6
8,000 sq ft · London SE8

Studio 1 — Tech specs

Infinity coveStage A

  • Length60′ · 18 m
  • Width57′ · 17.2 m
  • Grid height24′ · 7.3 m
  • Cove radius2′7″ · 0.8 m
  • Area3,420 sq ft

Electrical200A 3-phase

  • Left wall63A 3ph
  • Right wall125A / 63A / 32A 3ph
  • Photo area32A 1ph
  • Client areas13A 1ph
  • Truss4× Soca

Facilities

  • Toilets3×
  • Balcony300 sq ft
  • Green room200 sq ft
  • Production office120 sq ft
  • Styling room320 sq ft
  • Photo area1,000 sq ft

Motorised grid1t UDL

  • Main grid40×40 ft
  • Front line40 ft straight
  • Back line40 ft straight
  • Trolley7 m travel

Internet

  • Free WiFi50 Mbps / user
  • High-speed WiFi1 Gbps
  • Hard-wired4 Gbps sym.
  • Internal LAN10 Gbps

Parking / loading

  • Car-park spaces20×
  • Shutter doors2× · 4.3×4 m
  • Vehicle accessup to 18 t
  • WheelchairYes
Mammoth Film Studiosmammoth.londonLondon SE8 5DQ
Studio 2 — Floor plan04 / 6
5,000 sq ft · London SE8

Studio 2 — Floor plan

Drawn to scale · 18.00 × 22.00 m

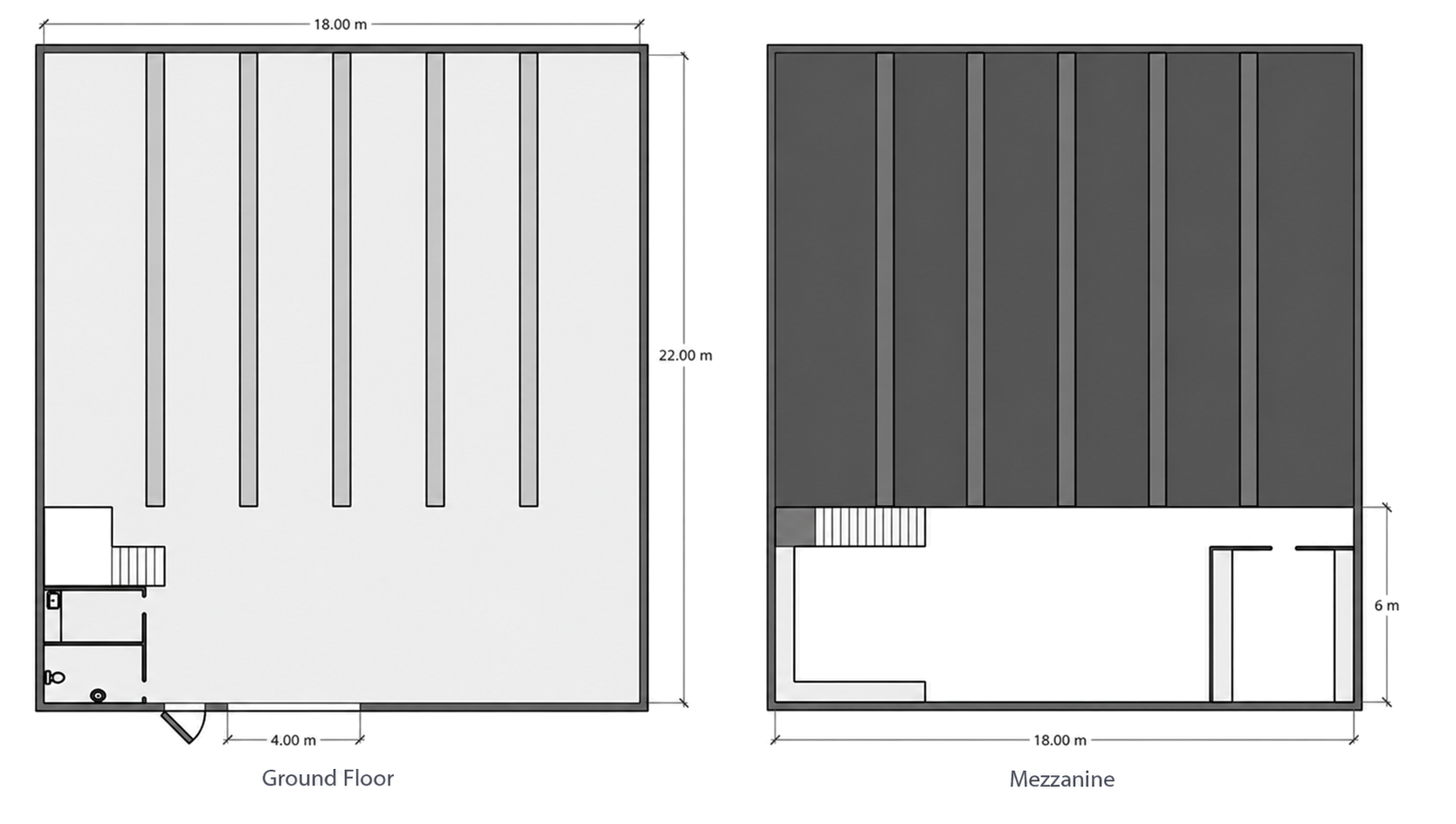

Studio 2 floor plan — ground floor and mezzanine, drawn to scale
Key
  • Rigging beams
  • Stairs to mezzanine
  • WC · office · kitchenette
Note
Drawn to scale from the
as-built plan. LED volume is
modular and repositionable.
Envelope
Building 18.00 × 22.00 m
Mezzanine 18 × 6 m
Stage 60 × 50 ft
Grid height 26 ft
Floor area ≈ 5,000 sq ft
Blackout 360°
Mammoth Film Studiosmammoth.londonLondon SE8 5DQ
Studio 2 — Technical05 / 6
5,000 sq ft · London SE8

Studio 2 — Tech specs

Stage

  • Stage area60×50 ft
  • Grid height26 ft
  • Blackout360°
  • FloorConcrete (black)
  • Payload4 t UDL
  • Lighting gridManual

Virtual productionin-house × Elsewhere

  • LED screen8×4 m flat
  • Configcurved / overhead
  • VP supervisorIncluded
  • 2D & 3D playbackIncluded

Production areas

  • Upper mezzanine1,100 sq ft
  • Office area350 sq ft
  • Client area500 sq ft
  • Styling room250 sq ft
  • Kitchenette80 sq ft

Electrical

  • Power supply100A 3ph
  • Stage power63A 3ph · 32A 1ph
  • Client areas13A 1ph

LED volume

  • Pixel pitch2.8 mm
  • ProcessingBrompton SX40
  • Screen brightness0–2000 nits

Access & logistics

  • Vehicle accessDrive-in
  • Parking10× spaces
  • Loading bay1×
  • Get-inGround floor
Mammoth Film Studiosmammoth.londonLondon SE8 5DQ
Site plan — Getting here06 / 6
London · SE8 5DQ

Site plan & getting here

2 stages · 30+ parking

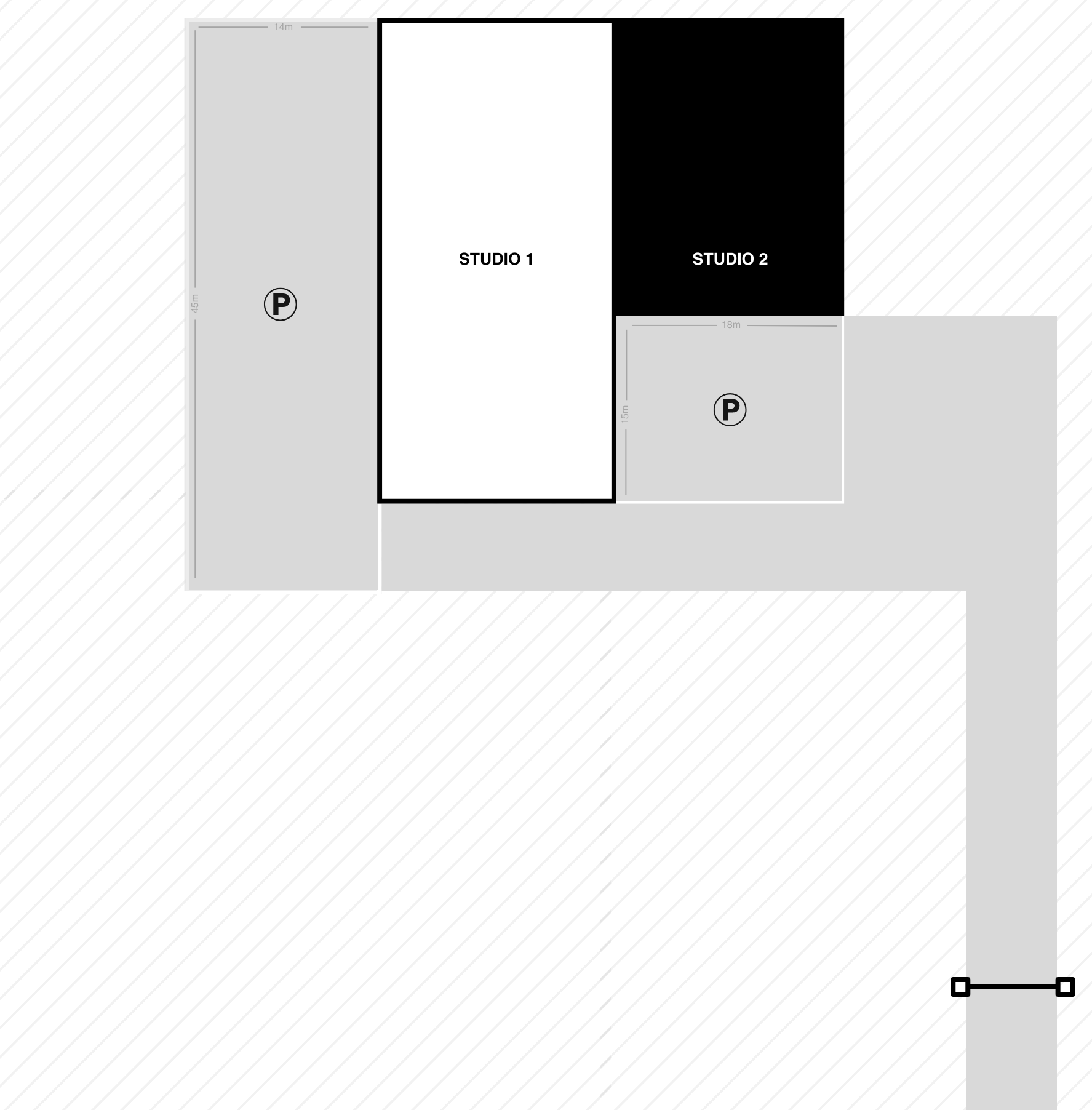

Site plan of Mammoth Film Studios — Studio 1, Studio 2, parking and the gated entrance off Evelyn Street, London SE8
Studio 1 — cove & blackout Studio 2 — VP & blackout Parking · loading Gated entrance
Address
Mammoth Film Studios, Unit 3 Huntsman House,
2 Evelyn Street, London SE8 5DQ
Entry
Dial 3# at front gate for entry
what3words
///brains.snake.cattle
Google Maps
maps.google.com → “Mammoth Film Studios”
Overground
Surrey Quays — 0.5 mi
Jubilee line
Canada Water — 0.8 mi
Bus
188 · 47 · N1 — 0.1 mi
Contact
020 3393 1227 · office@mammoth.london
